OT water spigot

Discussion in 'Blazers OT Forum' started by H.C., Sep 14, 2017.

  1. Sinobas

    Sinobas Banned User BANNED

    Joined:
    Feb 15, 2009
    Messages:
    14,608
    Likes Received:
    5,486
    Trophy Points:
    113
    Is the knob lose, as though it's not actually closing the valve? Sometimes you can just tighten the knob with a screw driver. Also, I don't think you have to go under the house unless you have a frost free kind. The regular kinds just screw into the pipe.

  2. Sinobas

    Sinobas Banned User BANNED

    Joined:
    Feb 15, 2009
    Messages:
    14,608
    Likes Received:
    5,486
    Trophy Points:
    113
    When I have to go under my house, I just pretend like I'm a soldier in Vietman going in to clear out a spider hole, but I know nothing down there will actually kill me, so it distracts from the idea that i might crawl over rodent crap.

    H.C. and SlyPokerDog like this.
  3. H.C.

    H.C. Well-Known Member

    Joined:
    Nov 25, 2013
    Messages:
    8,445
    Likes Received:
    8,728
    Trophy Points:
    113
    @SlyPokerDog
    So sly. Lets say I put the spigot on the spigot.
    How exactly do I stop the water from leaking out the old spigot as this piece goes inside of it.

    I could prolly put it back together. But is it going to leak?


    Attached Files:

  4. H.C.

    H.C. Well-Known Member

    Joined:
    Nov 25, 2013
    Messages:
    8,445
    Likes Received:
    8,728
    Trophy Points:
    113
    I tried tightening that bolt, grabbed a ratchet. But it didn't prevent water from coming out of the spot you attach the hose.
    Being that no one would ever mistake me for a plumber, I'm afraid if I just twist and break the old spigot loose. It will do something I'm not able to tackle to the pipe it's attached to.

  5. SlyPokerDog

    SlyPokerDog Woof! Staff Member Administrator

    Joined:
    Oct 5, 2008
    Messages:
    122,874
    Likes Received:
    122,869
    Trophy Points:
    115
    I thought you were talking about something like this.

    [​IMG]

    Where is the water leaking from? The mouth of the spigot or the handle?

  6. H.C.

    H.C. Well-Known Member

    Joined:
    Nov 25, 2013
    Messages:
    8,445
    Likes Received:
    8,728
    Trophy Points:
    113
    Legit, I'm more afraid of shit like this in my crawl space. Even though it doesn't exist. Than I am afraid of any critter.

    Chris Craig and SlyPokerDog like this.
  7. H.C.

    H.C. Well-Known Member

    Joined:
    Nov 25, 2013
    Messages:
    8,445
    Likes Received:
    8,728
    Trophy Points:
    113
    Before I took it apart, it was leaking from the mouth.
    The knob wouldn't tighten enough. I found the piece that failed when I took it apart. The end of the picture I showed you has a metal piece + oring that doesn't work anymore.
    I can most likely put this piece I took out back in. Just not sure now that I got it apart, it'll prevent it from leaking out the handle.

  8. SlyPokerDog

    SlyPokerDog Woof! Staff Member Administrator

    Joined:
    Oct 5, 2008
    Messages:
    122,874
    Likes Received:
    122,869
    Trophy Points:
    115
    Replace the o ring if you put it back in.

    Are the pipes under your house copper, galvanized, or PVC?

    What kind of pipe is your spigot connected to? If it's copper you have to be really careful twisting off the spigot, copper is soft and twists easily. PVC also breaks easily. If it's galvanized you can wrench on that shit pretty hard.

    I would try to put the handle back on, screw on a garden hose with a sprayer on the end that is shut off and turn on the water supply to the hose. If it leaks out the handle you can watch a couple of videos on youtube on how to fix the handle. If isn't leaking you can then put a spigot on your spigot.

    Without a lot of experience in do-it-yourself plumbing I would try to keep your fixes as simple as possible.

  9. H.C.

    H.C. Well-Known Member

    Joined:
    Nov 25, 2013
    Messages:
    8,445
    Likes Received:
    8,728
    Trophy Points:
    113
    I believe it's galvanized, as I remember looking at shiny silver with the spigot I changed when I first moved in.
    But I'm not entirely sure as that was a few years ago.
    I think I'll try to put this valve piece back in and see if it leaks out the handle with a hose like you suggested.
    If it doesn't I'll see if I can't figure out how to put a spigot on a spigot.

  10. andalusian

    andalusian Season - Restarted

    Joined:
    Sep 24, 2008
    Messages:
    15,012
    Likes Received:
    14,238
    Trophy Points:
    113
    Location:
    San Marcos, CA
    What spigot are you replacing them light with?

    (Am I doing it right).

    @SlyPokerDog will soon chime in with a helpful chart of birds of prey.

    SlyPokerDog likes this.
  11. SlyPokerDog

    SlyPokerDog Woof! Staff Member Administrator

    Joined:
    Oct 5, 2008
    Messages:
    122,874
    Likes Received:
    122,869
    Trophy Points:
    115
    That brass gate from Amazon that I linked to would be sold in the garden hose section, not the plumbing section. They come in brass, metal and plastic. Brass is best. You could do a spigot on a spigot or put a gate on the end of the spigot. A gate would be the easiest.

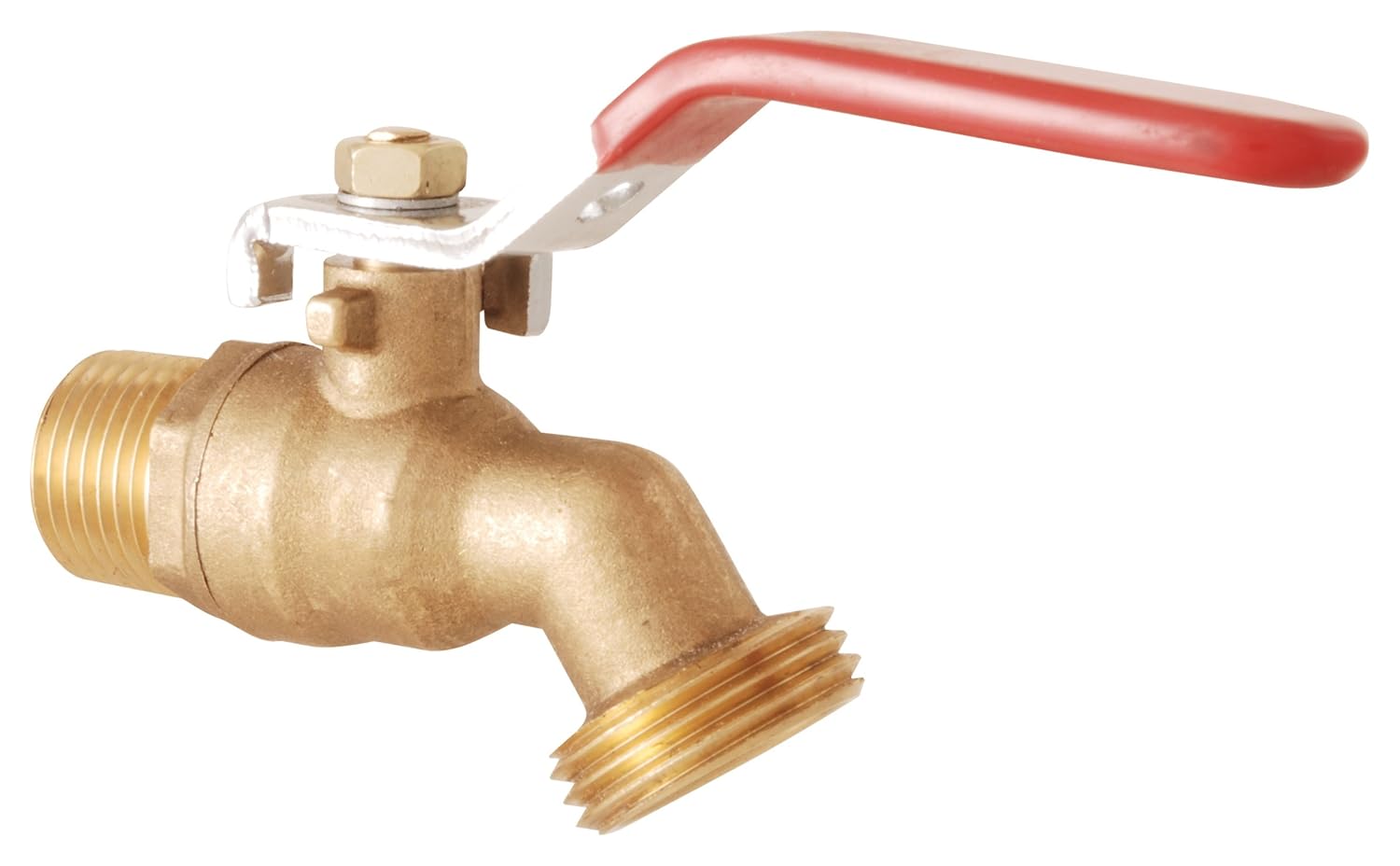

    BTW, if you end up replacing the spigot and you own the home I personally like ball cock valves over a standard spigot. Cost a little more, last much longer.

    [​IMG]

  12. SlyPokerDog

    SlyPokerDog Woof! Staff Member Administrator

    Joined:
    Oct 5, 2008
    Messages:
    122,874
    Likes Received:
    122,869
    Trophy Points:
    115
    You want to ball cock the birds.

    Chris Craig likes this.
  13. H.C.

    H.C. Well-Known Member

    Joined:
    Nov 25, 2013
    Messages:
    8,445
    Likes Received:
    8,728
    Trophy Points:
    113
    Unfortunately putting everything back together caused it to leak out the handle.

    The issue why I couldn't find a new valve replacement was the small metal piece on the end of it along with the o-ring. As they don't make that part anymore.
    So I'll have to figure out how to stop it from leaking out the handle if I go with spigot on spigot.

    Side note, I'm a little annoyed this morning. I went down to the street to shut off the water last night. Apparently it didn't shut off, slowed to a trickle. But not completely to keep the meter from going up .7

    I'm tempted to just wrench on it and pray copper doesn't come in silver.

    SlyPokerDog likes this.
  14. H.C.

    H.C. Well-Known Member

    Joined:
    Nov 25, 2013
    Messages:
    8,445
    Likes Received:
    8,728
    Trophy Points:
    113
    I do own the house, it's my first home purchase. Nothing fancy, and I will be looking to sell soonish as the value has gone up by about 50-100k since I bought it.

  15. SlyPokerDog

    SlyPokerDog Woof! Staff Member Administrator

    Joined:
    Oct 5, 2008
    Messages:
    122,874
    Likes Received:
    122,869
    Trophy Points:
    115
    Copper doesn't come in silver, also if it were copper in the ground it would have green tarnishing.

  16. SlyPokerDog

    SlyPokerDog Woof! Staff Member Administrator

    Joined:
    Oct 5, 2008
    Messages:
    122,874
    Likes Received:
    122,869
    Trophy Points:
    115
    First, I'm not a plumber, I just have done a shit ton of my own plumbing. That doesn't mean I know what I'm talking about.

    If you are going to sell your house soon then a spigot on a spigot won't pass a home inspection. A spigot on a spigot is a fix but not a repair.

    Soooo...

    What exactly are you going to do under your house to your pipes to fix this?

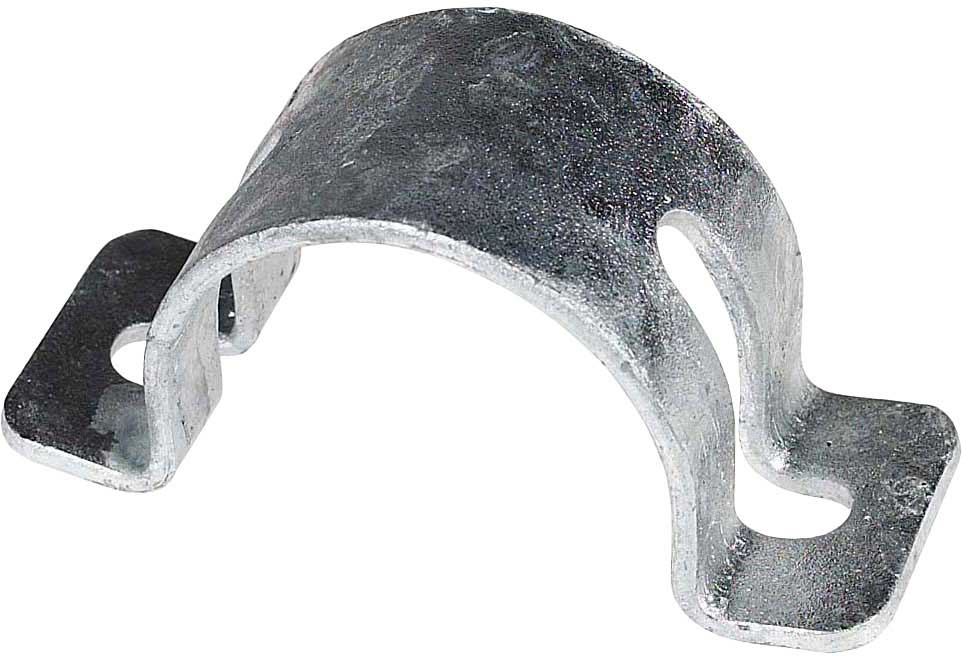

    If you're going to unscrew a pipe from a pipe fitting and if you see where you can, you should get some of these and screw them to the floor joist on the part of the pipe you aren't removing. That way you when you are wrenching on the pipe the other pipe that you're trying to free it from isn't twisting or bending.

    [​IMG] [​IMG]



    I would still try to use a pipe wrench and twist the old spigot off the end of the pipe instead of crawling under the house and unscrewing the pipe the spigot is connected to from the part it's screwed into.

  17. SlyPokerDog

    SlyPokerDog Woof! Staff Member Administrator

    Joined:
    Oct 5, 2008
    Messages:
    122,874
    Likes Received:
    122,869
    Trophy Points:
    115
    Also, if your pipes are copper DO NOT USE a galvanized bracket. Same if the pipe is galvanized DO NOT USE a copper bracket. Copper and galvanized don't like each other.

    Nikolokolus likes this.
  18. SlyPokerDog

    SlyPokerDog Woof! Staff Member Administrator

    Joined:
    Oct 5, 2008
    Messages:
    122,874
    Likes Received:
    122,869
    Trophy Points:
    115
    Also you really should be using a water key instead of a wrench on that.

    http://www.homedepot.com/b/Plumbing-Plumbing-Tools-Water-Meter-Keys/N-5yc1vZca9c

  19. H.C.

    H.C. Well-Known Member

    Joined:
    Nov 25, 2013
    Messages:
    8,445
    Likes Received:
    8,728
    Trophy Points:
    113
    I'm prolly just going to end up trying to twist the old spigot off and hope for the best. I'm like 99% sure all of the pipe under my house was silver when I took the other one off and replaced isolation due to it cracking. I'm assuming galvanized pipe is silver. I know for a fact it wasn't pvc pipe.
    Worst case my house is without water until I hire a plumber to the damage I caused.

    SlyPokerDog likes this.
  20. H.C.

    H.C. Well-Known Member

    Joined:
    Nov 25, 2013
    Messages:
    8,445
    Likes Received:
    8,728
    Trophy Points:
    113
    SlyPokerDog likes this.
